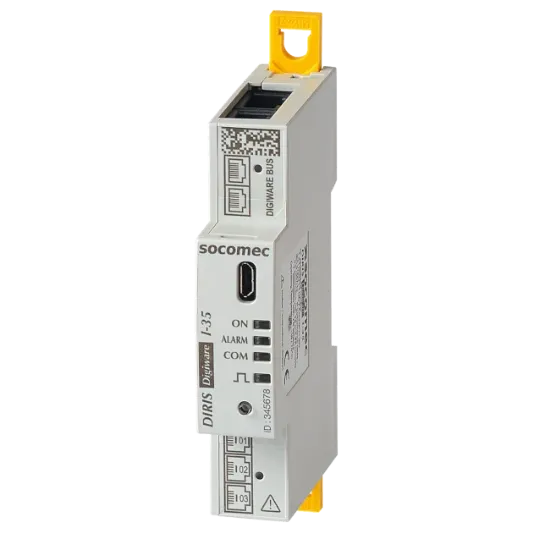

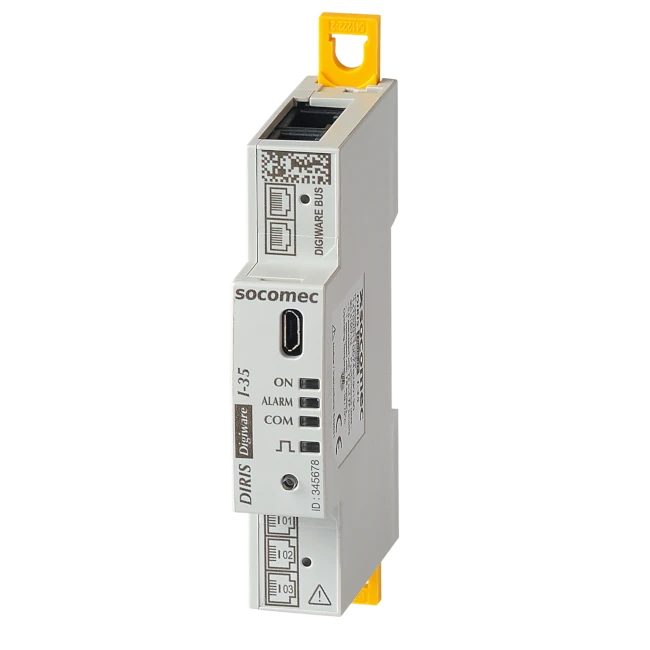

48290130 Current module DIRIS Digiware I-35, 3 current inputs, Analysis by Socomec

Description

DIRIS Digiware I are DIN-rail mounted power monitoring modules

• Associated with DIRIS Digiware U modules, they measure and monitor electrical parameters such as powers, energies and power quality of electrical installations
• The modularity, along with the RJ45 Digiware Bus provides a unique multi-circuit and scalable approach
• Adding DIRIS Digiware I modules to the bus is done simply by clicking in an RJ45 cable
• This allows great flexibility to users who wish to add more metering points in the future
• The RJ12 current inputs allow a quick and error-free connection to current sensors (TE, TR/iTR, TF) with automatic detection of the type and rating of the current sensors connected
• This ensures reliable and accurate measurements at all times
• Advantages
  • Multi-circuit
    • One module can monitor up to 2 three-phase circuits
    • Up to 31 current measurement modules can be added to the Digiware Bus, allowing to monitor a large number of circuits within the same DIRIS Digiware system
  • Plug & Play
    • RJ45 cables for a quick and easy connection of modules
    • Color-coded RJ12 cables to connect current sensors, quickly, safely and without errors
    • Load type, current sensor type and rating are automatically detected
    • When connected to iTR current sensors, the AutoCorrect technology detects and corrects wiring errors, making the system more reliable
  • Accurate
    •  Compliant with standard IEC 61557-12, guaranteeing the quality and accuracy of measurements
      • class 0.5 from 2 - 120% In for the global measurement chain (including TE/ iTR/TF current sensors)
      • class 1 from 2 - 120% In for the global measurement chain (including TR current sensors)
  • Flexible

    • Modules available in 3, 4 or 6 current sensor inputs
      • The types of current modules can be mixed within the Digiware system, to monitor a variety of single-phase, two-phase and three-phase circuits
• Various types of current sensors can be connected to the DIRIS Digiware I Current measurement modules

  • Solid-core TE
  • Split-core TR/iTR
  •  Flexible Rogowski TF current sensors
  • This range of sensors can be adapted to all types of new or existing installations
  • A rapid RJ12 connection makes wiring easy and reliable and prevents wiring errors
  • The DIRIS Digiware I meter module automatically recognizes the type of sensor used and its current rating
  • This guarantees the accuracy of the overall measurement chain (DIRIS Digiware I + current sensors)
