Description

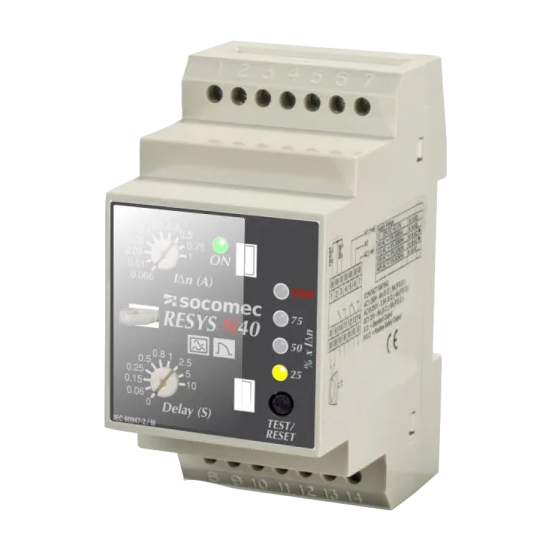

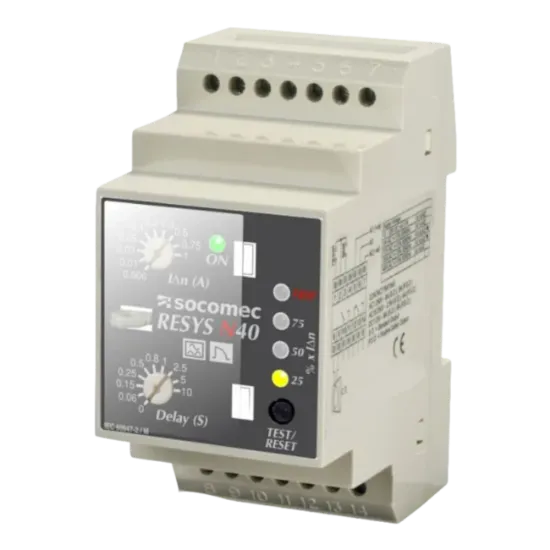

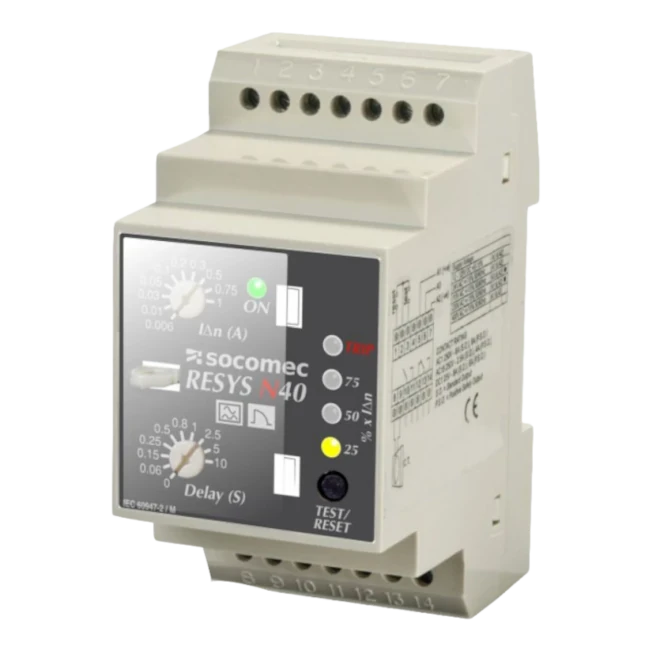

Socomec 49413130 RESYS N40 Ground Leakage Monitoring Relay, Supply voltage: 24-230V AC/DC, NFC Communication, Current measuring range: 30mA-30A
Key Features
- Programmable user settings/adjustments
- Built-in NFC (Near Field Communication) allows user to access and change settings via compatible Smartphone/Device with installed app as well as retrieve historical data
- True R.M.S. measurements
- Option to select alternative CT ratio, tripping method (latch or auto-reclosure modes), Output relay logic (pre-alarm, energise or de-energise on trip) and filter cut-off points
- Connection facility for remote “Test” and “Reset” push buttons or N.O. contacts
- CT open and short-circuit detection forces unit to trip (Red LED flashes during this condition)
- 2 Relay outputs – Relay 1 (SPDT) and Relay 2 (SPNO) - User configurable
- Wide auxiliary operating supply voltage - 24 – 230V AC/DC
- Compliant with IEC 60947-2 / Annex M
- UL Listed
- Functions
- Pre-Alarm mode (configurable via app)
- Auto-reset mode (enabled via app)
- Latching mode (factory default)
- Auto-reclosure mode (enabled via app)
- Trip level settings (I∆n): 30mA, 100mA, 300mA, 500mA, 1A, 3A, 5A, 10A, 20A, 30A
- Time delay (Non-operate) settings (∆t): 0 (actual delay when set to 0 (instantaneous) is <25ms @ 5 x I∆n), 60ms, 150ms, 250ms, 500ms, 800ms, 1s, 2.5s, 5s, 10
- 49413130 RESYS N40 Cross Over
- BENDER: RCM420
- SCHNEIDER: RH99M
- CIRCUTOR: RGU-10
- CARLO GAVAZZI: DEB71
Zero-Sequence Current Transformers
|
| Part Number | Opening ø | Input Rating (A) | Description |

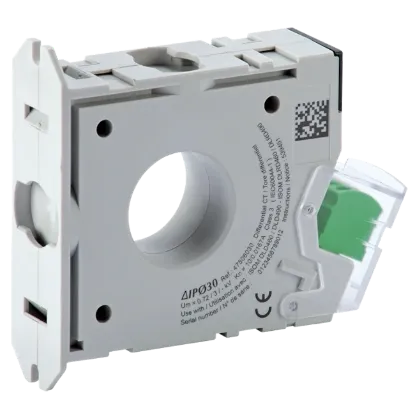

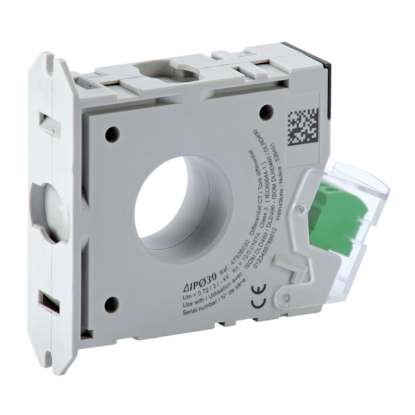

| 49506030 | 1.2 in (30 mm) | 65 | Solid-Core toroid type A DELTA IC30 |

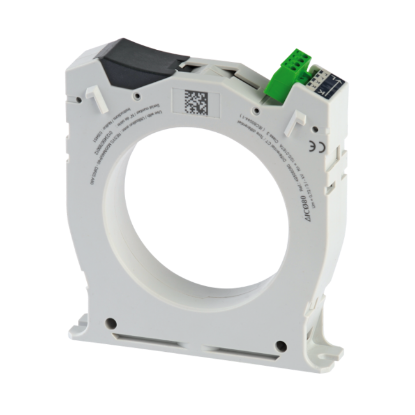

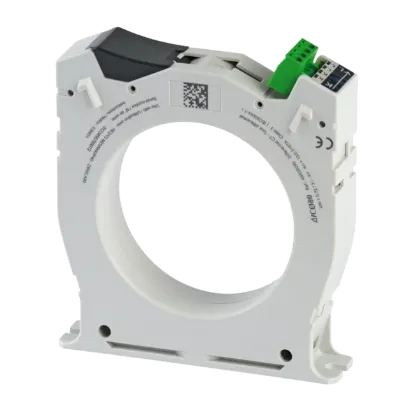

| 49506080 | 3.1 in (80 mm) | 160 | Solid-Core toroid type A DELTA IC80 |
| 49506120 | 4.7 in (120 mm) | 250 | Solid-Core toroid type A DELTA IC120 |
| 49506200 | 7.9 in (200 mm) | 400 | Solid-Core toroid type A DELTA IC200 |

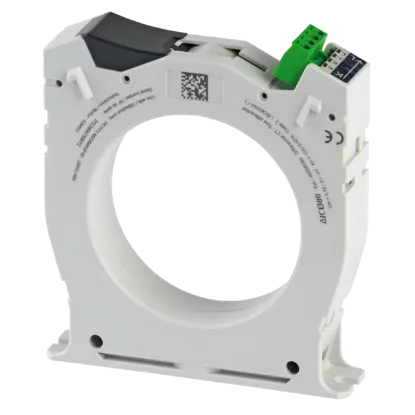

| 49506300 | 11.8 in (300 mm) | 630 | Solid-Core toroid type A DELTA IC300 |
