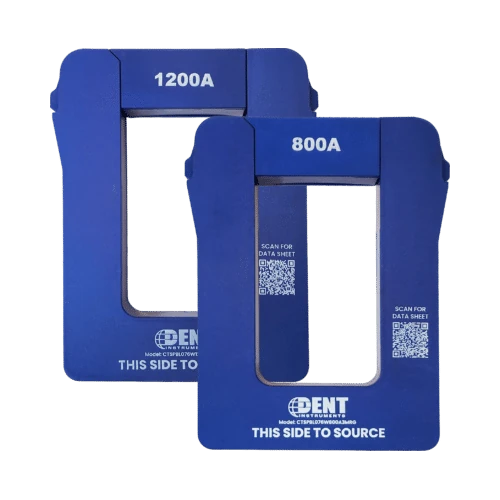

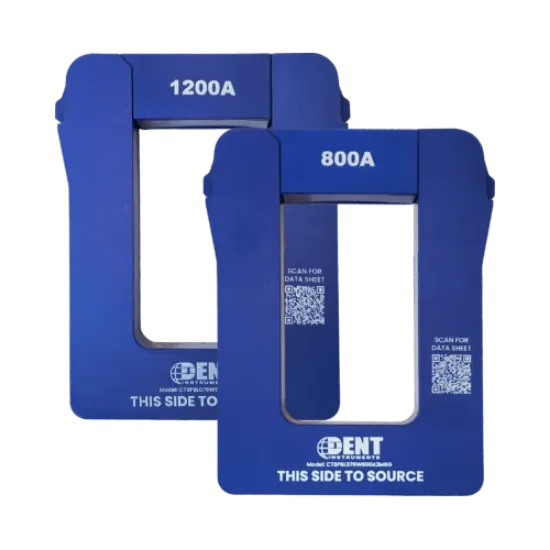

CT-SPBL-076W-800A-3M-RG 333mV Output AC Current Transducer by DENT Instruments

Manufacturer: DENT Instruments

SKU: CT-SPBL-076W-800A-3M-RG

$200.00

Availability: 6 in stock

Non-Stock Lead Time: 3-5 Bus. Days

Qty:

Minimum Order Quantity is 1

Products specifications

Attribute name	Attribute value
Input Rating (A)	800
Output	0.333 Vac
Shape/Style	Split-Core
Error %	0.3, 1
Opening (greatest dim.)	3 in (76 mm)
# of Inputs	1
Series	CT-SPBL

Description

DENT’s SPBL-Series Split-Core Current Transformers are designed for Revenue Grade applications requiring very high accuracy and are ideal for larger current loads

The SPBL-Series supports current ratings from 100A to 1200A, making it perfect for energy & demand metering, tenant submetering, and load surveys
Current Rating: 100A
Current Range: 1-150A
Output: 333 mV at rated current
Accuracy: +/-0.3% at rated current (typical)
Phase Error: <0.2° at rated current (typical)
Class 0.3 when used with Dent meters; otherwise they are Class 1.0

Part Number	Input Amps	Window Size
CT-SPBL-019W-100A-3M-RG	100	0.75 in (19 mm)
CT-SPBL-019W-200A-3M-RG	200	0.75 in (19 mm)
CT-SPBL-032W-400A-3M-RG	400	1.25 in (32 mm)
CT-SPBL-051W-600A-3M-RG	600	2 in (51 mm)
CT-SPBL-076W-800A-3M-RG	800	3 in (76 mm)
CT-SPBL-076W-1200A-3M-RG	1200	3 in (76 mm)
