Description

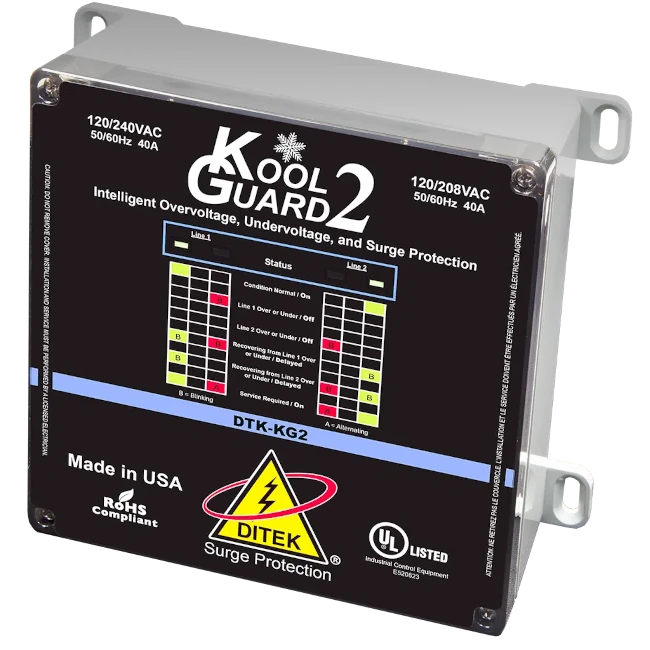

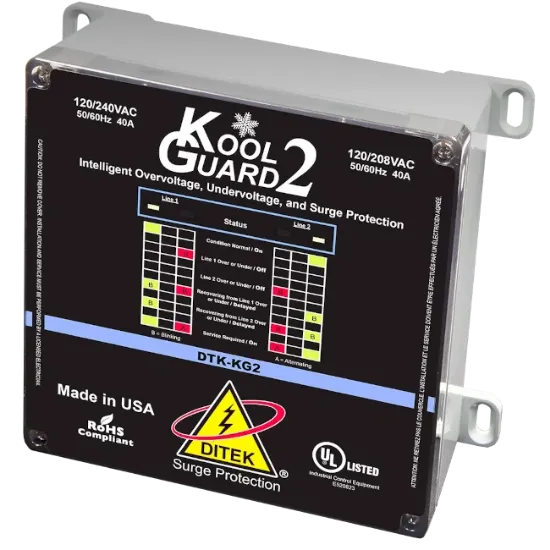

DITEK’s DTK-KG2 is part of the Kool Guard family of voltage monitoring products
- It is specifically designed to protect HVAC equipment from harmful undervoltage and overvoltage events that can damage sensitive electronics and mechanical components within the system
- The DTK-KG2 also incorporates DITEK’s state-of-the-art surge protection design to shield the equipment from damaging transient voltage surges and spikes
- The standard UL Type 4X polycarbonate enclosure allows the unit to be easily installed in harsh outdoor environments
- Product Features
- Superior protection for undervoltage & overvoltage events by monitoring each full wave sequence of a 60Hz power cycle
- Safely disconnects power to the system until input voltage returns to normal range
- Diagnostic red and green LEDs indicate the exact voltage condition that is present
- Pre-programmed voltage range limits for ease of installation
- UL & CSA listed
- Applications
- Inverter-driven HVAC Systems
- Condensing Units
- Ductless HVAC Systems
- Protection for undervoltage & overvoltage events on 120/240VAC or 120/208VAC split phase circuits up to 40A
- Auto-calibration feature eliminates the need to manually calibrate the unit to the specific input voltage
- Safely disconnects power to the system for 3 minutes allowing input voltage to return to normal range
- Ideal protection for inverter-driven compressor systems and mini-splits
- Diagnostic red and green LEDs indicate exactly what voltage condition is present
- Surge protection components included to divert harmful transient voltages away from the equipment
- Accepts 1/2" or 3/4" NPT flexible conduit
- UL Listed
