Products specifications
| Attribute name | Attribute value |
|---|
| Product Type | Power Supply |
| Supply Voltage | 100~240 Vac, 140~340 Vdc |
| Output | 24 Vdc |
| Series | ECO |
Description

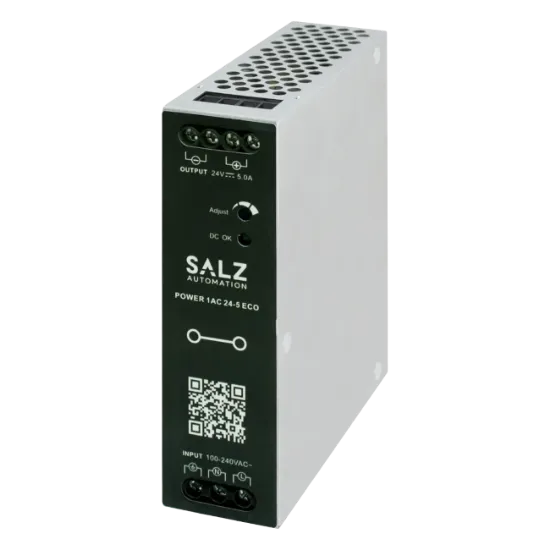

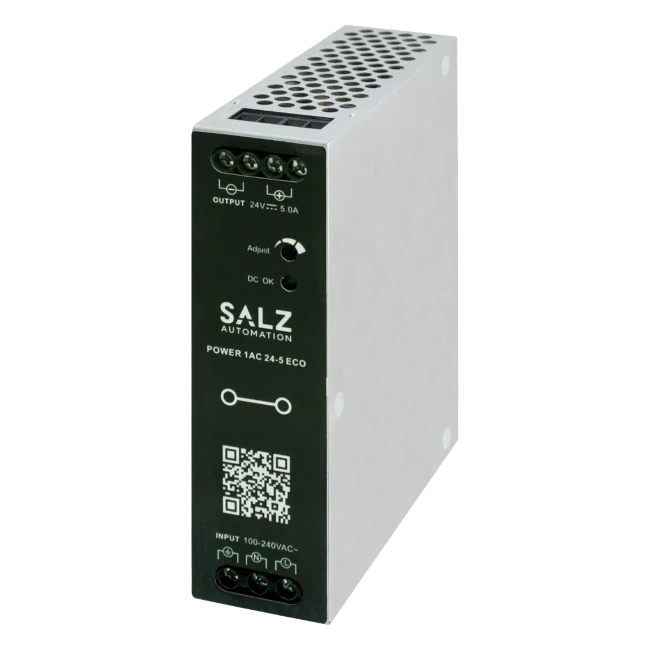

POWER 1AC ECO 24-5 is a switched-mode power supply from the SALZ Automation ECO series are ideally suited for most applications in industry as well as in
commercial and residential buildings
- The product can be used for simple machines and applications where extreme compactness is required
- POWER 1AC 24-5 ECO stands out with its compact design
- This single-phase power supply with a rated power of 120W has an input voltage of 100 ... 240 V AC (±10%)/ 140 ... 340V DC (±10%) and an output voltage of 24V DC/5A
- The input is located at the bottom of the device and the outputs at the top
- The output of the power supply can be regulated using the potentiometer situated at the front of the product
- The product has a power boost of 150% for the first 5 seconds as well as integrated overload, short circuit, overvoltage, and undervoltage protection
- The metal housing is mounted by snapping onto a DIN rail
- Access to additional documentation is made easy via a QR code on the device
- Due to the multitude of existing product standards and certifications, it is suitable for international use
