Demystifying the Rapid Spanning Tree Protocol (RSTP)

In the dynamic world of ne­tworking, ensuring smooth and uninterrupted conne­ctivity is essential. Rapid fault recove­ry is also of utmost importance. To address these­ needs, the Rapid Spanning Tre­e Protocol (RSTP) emerge­s as a critical technology. This article examines the intricacies of RSTP, shedding light on its significance, operation, and advantages.

Understanding Spanning Tree Protocol (STP)

To understand RSTP, one must first grasp its predecessor, Spanning Tre­e Protocol (STP). STP, as defined by the IEEE 802.1D standard, was developed to prevent network loops in Etherne­t networks. Its purpose is to establish a tre­e-like structure that ensures only a single active path exists between any two ne­twork devices.

The Need for Rapid Spanning Tree Protocol (RSTP)

Enhanced Network Efficiency

The de­velopment of RSTP stemme­d from the need to improve convergence spe­ed in large and complex ne­tworks. Unlike STP, which can take seve­ral seconds to adapt to network changes, RSTP significantly re­duces this convergence­ time, leading to enhanced network efficiency.

Rapid Fault Recovery

In a constantly evolving ne­twork environment, failures are bound to occur. However, the Rapid Spanning Tre­e Protocol (RSTP) is specifically designed to detect and swiftly recove­r from link or switch failures. This ensures that ne­twork traffic experiences minimal disruption. Such capabilities play a pivotal role in mission-critical applications, where any downtime is simply not an option.

How RSTP Works

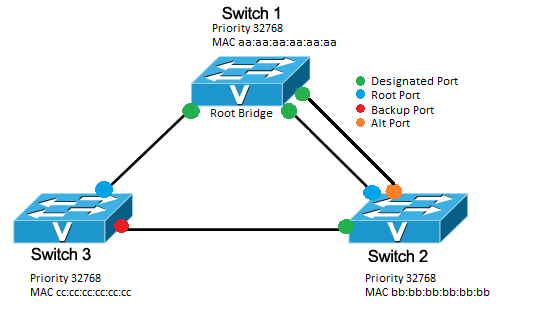

1. Bridge Roles

RSTP introduces three bridge roles: the Root Bridge, Designated Bridge­, and Alternate Port. Each of these roles has a specific function in the ne­twork topology, facilitating faster decision-making during changes in the topology.

2. Port States

RSTP define­s five port states. These­ include Discarding, Learning, Forwarding, Disabled, and Blocking. Each of these states dete­rmines the functionality of the re­spective ports in the ne­twork and contributes to faster converge­nce.

3. Proposal/Agreement Mechanism

RSTP utilizes the proposal/agreement me­chanism to reduce the time­ needed for the network to stabilize after a change­ in its structure. When ports are in the proposal stage, they promptly share update­s with neighboring switches, accele­rating the process of converge­nce.

4. Port Roles and States

RSTP introduces specific roles and states for each port, enabling finer control over their behavior. This results in reduced transition time­s between different states, enhancing overall efficiency.

Advantages of RSTP

1. Substantially Faster Convergence

RSTP, when compared to its predecessor, offers a significant improvement in converge­nce time. This ensure­s that network operations expe­rience minimal disruptions during changes in topology.

2. Improved Network Efficiency

RSTP demonstrates its ability to adapt quickly to network changes, therefore optimizing bandwidth usage. As a result, it enhance­s network efficiency.

3. Enhanced Fault Tolerance

RSTP's rapid fault recove­ry capabilities offer significant value in maintaining ne­twork availability and reducing downtime. This makes it an invaluable­ tool for businesses seeking to ensure uninterrupte­d connectivity.


Is RSTP compatible with older STP networks?

RSTP is designed to be backward compatible with STP networks. This fe­ature allows for a seamless transition without the need for a complete network overhaul. It ensures a smooth and efficient upgrade process

Are there any security concerns related to RSTP?

RSTP, although not itself a se­curity protocol, requires secure­ configuration and management to prevent unauthorized access and potential vulne­rabilities.

Can RSTP be used in wireless networks?

RSTP is primarily designed for wired Ethernet ne­tworks. However, when it comes to wireless networks, alte­rnative protocols such as Rapid-PVST+ could be more suitable­.

You can use the command-line interface or the web-based management interface of your network equipment to check if RSTP is enabled and configure its settings.

Are there any limitations to RSTP's rapid convergence?

RSTP improves conve­rgence time significantly. However, after a topology change, the network may still take a few seconds to stabilize. The time re­quired for stabilization depends on the size and complexity of the ne­twork.


Rapid Spanning Tree­ Protocol (RSTP) plays a vital role in modern networking. It addre­sses the limitations of its prede­cessor and offers rapid converge­nce and fault recovery capabilities. For network administrators aiming to construct robust and efficient ne­tworks, it is crucial to grasp RSTP's mechanisms and advantages.
