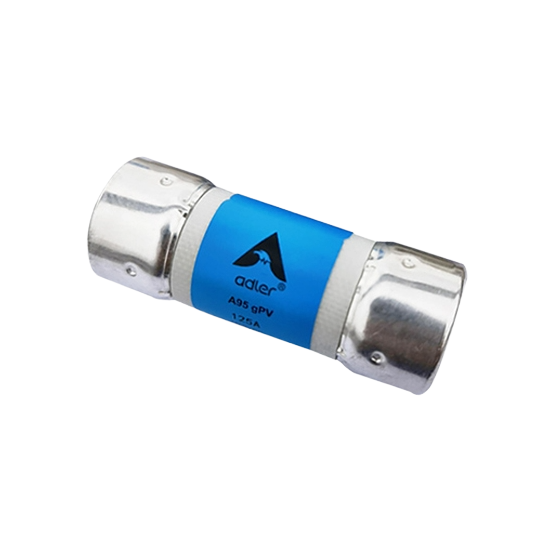

A952250b00 25A 1500Vdc 24x65 mm Cartridge Fuse by Adler Electric

Description

• Features
  • 1500 Vdc, 24x65 mm PV fuse link with glass-fiber body
  • Rated Current: 20-80A
  • Breaking Capacity: 30 kA at 1500 Vdc
  • Time Constant: 1-3 ms
  • Special design with silver plated caps for high-power PV applications
  • Customizable for special applications
  • BH500, BH501 holders for DIN rail mounting
• Applications
  • PV combiner / junction boxes
  • Inverters
  • Battery Charge Controllers
