Products specifications
| Attribute name | Attribute value |
|---|
| Input Rating (V) | 1500 Vdc |
| Rated Current (A) | 80 |
| Poles | 1 |
| Input Type | DC |
| Mounting Option | DIN rail |
| Dimensions | 24x65 mm |
| Series | BH |
Description
Adler BH500/BH501 & BH500-N/BH501-N touch safe holders are designed especially for use with 24X65mm fuse links.
- Features
- Adler BH500/BH501 & BH500-N/BH501-N touch safe fuse holders are designed for all standard 24X65 mm PV fuses such as ADLER A95series
- With current ratings up to 125 A at 1500 Vdc, this holder provides the most compact and effective solution to protect 1500 Vdc circuits and equipment in photovoltaic applications
- Note: SCCR is limited to the interrupting rating of the installed fuse or 30KA, whichever is less
- Specifications
- Rated Voltage: 1500 Vdc
- Rated Current
- BH500/BH501 Up to 80A
- BH500-N/BH501-N Up to 125A
- Short Circuit Current Rating (SCCR): DC 30kA
- Standards
- BH500/BH501 TUV 125A, UL80A
- BH500-N/BH501-N UR 80~125A
- Max. Dissipation: 25W
- Material Flammability: UL94-V0
- Mounting: DIN Rail mounting
- Max. Torque: 4N.m
- Wire Range: 2-12AWG
- Temperature Tolerance (RTIstr): -40℃ to+90℃
- Approvals: UL (File: E486822)
| Fuse Part Number | Rated Current (Amps) |
| A952200b00 | 20 |
| A952250b00 | 25 |
| A952300b00 | 30 |
| A952350b00 | 35 |
| A952400b00 | 40 |
| A952550b00 | 55 |
| A952600b00 | 60 |

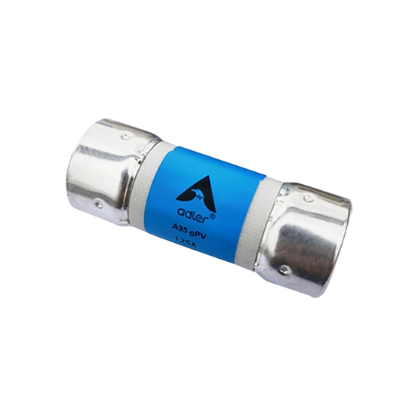

| A952650b00 | 65 |
| A952700b00 | 70 |
| A952800b00 | 80 |
