BH400 Touch Safe Fuse Holder for 24x58mm fuse links by Adler Electric

Description

Adler BH400/(BH401 has indicator light) touch safe holders are designed especially for use with 24X58mm fuse links.

• Features

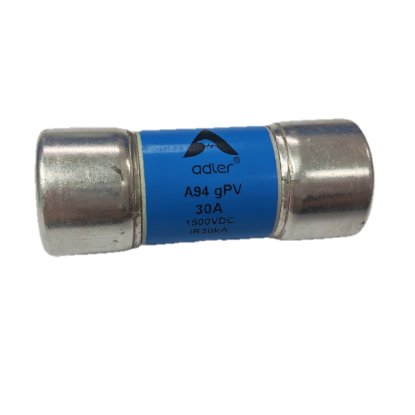

  • Adler’s BH400 and BH401 (has indicator light) touch safe fuse holders are designed for all standard 22x58 mm PV fuses such as ADLER A94 series and other cylindrical fuses up to 22x58
    mm
  • With current ratings up to 80 A at 1500 Vdc, it can effectively protect 1500 Vdc circuits and equipment in photovoltaic applications
  • Specifications
    • Rated Voltage: 1500 Vdc
    • Rated Current: 80 A
    • RatedBreakingCapacity:10kA
    • Rated Impulse Withstand Voltage (Uimp): 8kV
    • Wire Range: 1-12 AWG
    • Max. Torque: 4 N.m
    • Max. Dissipation: 8 W
    • Temperature Tolerance (RTIstr): -40℃ to +90℃
    • Material Flammability: UL 94-V0
    • Mounting: DIN Rail mounting
    • Standards: UL 4248-19; EN 60947-3
    • Approvals
      • UL (File: E486822)
      • TUV (File: R50460275)
