Products specifications
| Attribute name | Attribute value |
|---|
| Input | 208~480 Vac |
| CT Input | 333mV, Rogowski Coil |
| Phase | 1P2W, 1P3W, 3P4W |
| Functionality | Current, Energy, Frequency, Power, Voltage |
| Communication | BACnet/IP, BACnet MS/TP, Ethernet, Lonworks, RS485, Serial |
| Datalogging | No |
| Supply Voltage | Self Powered |
| # of Inputs | 3 |
| Series | DTS |
Description
Measurlogic DTS-310 series offers Compact Line Powered (Serial / Ethernet) Class 0.2 revenue grade sub-meter for single or 3-phase systems
- Line powered single / three phase energy submeter
- Auto-topology detection
- Compact DIN rail design: 4.73” L x 1.38” W x 4.25” H
- ANSI C12.20 – “Revenue grade”
- ETL Listed, CE
- BTL Listed, SunSpec Alliance certified
- 208-600 Vac (1P 2W, 1P 3W, 3P 4W)
- Ethernet connectivity – Modbus/TCP, BACnet/IP, SNMP or DNP 3.0
- RS-485 connectivity – Modbus RTU or BACnet MS/TP
- LonWorks FT-10 communications
- Communications setting via DIP switches for Modbus RTU

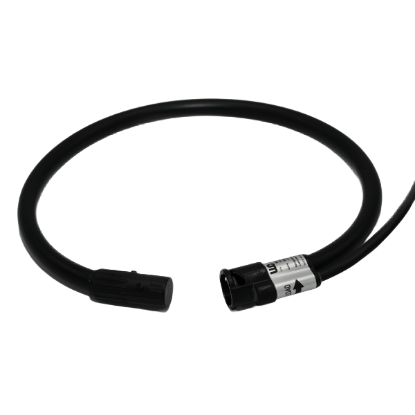

- Interfaces with “safe” 333mV or RopeCTs
- User-definable Modbus register area
- Bi-directional for renewable systems (NET metering)
- Color coded, pluggable connectivity
- User configurable using DTS Config software
- Designed and Manufactured in the USA
- Complies with Buy American Provisions of ARRA Section 1605
| Model | Communication | Included |
| DTS 310-34-NN-P-4 | NO communications | Pulse output (kWh) |
| DTS 310-34-SB-A-4 | RS-485 BACnet MSTP and Modbus communications | Pulse output (kWh) and 2 x digital inputs |
| DTS 310-34-SL-N-4 | Lonworks FT-10 communications | No IO |
| DTS 310-34-EB-A-4 | Ethernet BACnet/IP & Modbus TCP communications | Pulse output (kWh) and 2 x digital inputs |
Cross References:
Siemens
7KM21120BA003AA0
7KM22002EA301DA1
7KM22002EA301EA1
7KM22002EA301HA1
7KM22002EA301JA1
7KM31200BA011DA0
7KM31201BA011EA0
7KM31330BA003AA0
7KM32000CA011AA0
7KM32200BA011DA0
7KM3220-0BA01-1DA0
7KM32201BA011EA0
7KM42111BA003AA0
7KM42120BA003AA0
