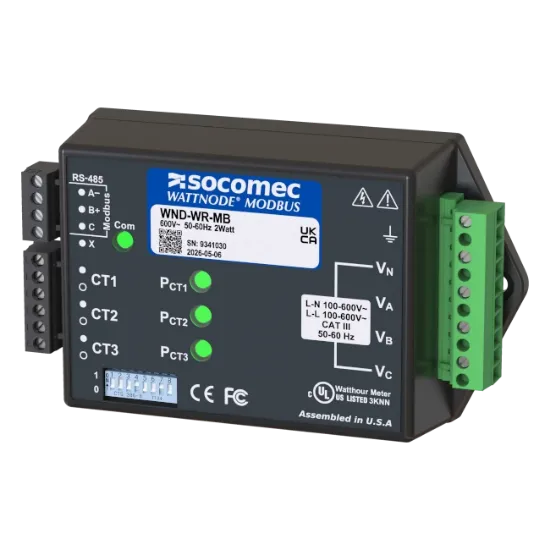

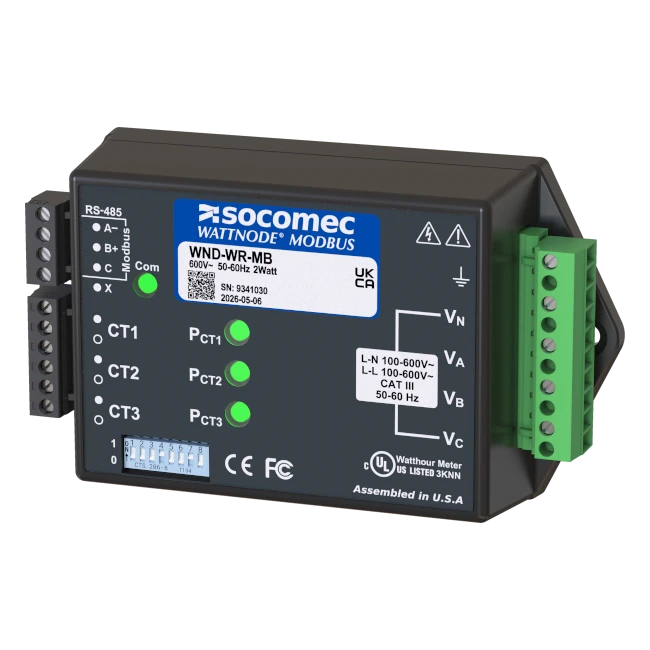

WattNode® WND-WR-MB-OS Wide-Range Modbus Meter by Socomec

Description

WattNode® Wide-Range Meter for Modbus

• The new WND-WR-MB-OS provides over fifty electrical measurements over a Modbus RTU RS-485 network
• Designed as a universal line-powered meter, it works on any utility service from 100 to 600 Vac, single or three-phase, wye, or delta
• The WND-WR-MB-OS has the same dimensions as its WattNode Modbus predecessor but its expanded register map provides many unique features not previously offered in the submetering market
• New registers include fast power for export limiting, registers to correct wiring errors remotely, potential transformer ratio for 4160 Vac and higher utility services, and SunSpec compliance
• Standard Features
  • Measures 100 to 600 Vac single-phase or three-phase, wye or delta
  • Line powered from 100 to 600 Vac, line-neutral or line-line
  • Correct wiring errors remotely
    • Change a CT's polarity
    • Change a CT to a different line voltage
  • PT ratio register for use with potential transformers
  • Current transformer disconnect detection
  • Modbus RTU, RS-485
  • For use with safe low voltage (0.333 Vac) CTs to 6000 amps
  • Fast power feature for export limiting applications
  • Nine baud rates from 1.2K up to 115K
  • SunSpec compliant register list
  • Revenue Grade Accuracy
    • Meets ANSI C12.1-2014 & ANSI C12.20-2015
    • Class 0.5 when used with Class 0.2 CTs
• New Socomec Part Number: 48710002

Cross References:
Siemens
7KM21120BA003AA0
7KM22002EA301DA1
7KM22002EA301EA1
7KM22002EA301HA1
7KM22002EA301JA1
7KM31200BA011DA0
7KM31201BA011EA0
7KM31330BA003AA0
7KM32000CA011AA0
7KM32200BA011DA0
7KM3220-0BA01-1DA0
7KM32201BA011EA0
7KM42111BA003AA0
7KM42120BA003AA0
