Every industry has sensitive current measuring challenges. Many old methods, like current transformers and shunt resistors, are working fine. But, they are failing in accuracy.
It leads to inefficiencies, higher costs, and failures. Fortunately, Rogowski coils are now taking over. They offer the accuracy, low costs, and efficiencies of current transformers.
Rogowski coils smooth the process of measuring AC currents. No matter whether you are in energy management, industrial automation, or renewable energy. These Coils can give the best efficiency ratio to your AC current measurements.
At Aim Dynamics, we have our top picks with a wide range of Rogowski Coils by the top manufacturers.
Rogowski Coil measures Ac current with maximum accuracy. This article, however, covers the fresh knowledge of Rogowski coils and their applications. Because these coils never stop evolving. What it was five years ago is not the same as what is now.
Key Takeaway
Rogowski coil design involves careful consideration of materials, construction techniques, and integration methods. You must optimize. It is key to reach the accuracy and performance you want in your measurements.
History of the Rogowski Coil
Rogowski coil was first invented by Walter Rogowski. He was a German Physicist in the 20th century.
Rogowski's innovation was an innovative work on electromagnetic theory and measurement techniques. The design he made consists of a helical coil wound on a non-magnetic core. It revolves around the process of measuring AC currents.
Rogowski's design went through many changes in the past. Now we use these coils in modern materials, power quality analysis, clamp meters, and many more.

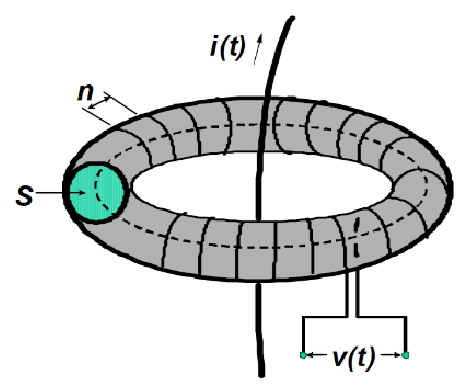

What is a Rogowski Coil?
Rogowski Coils Still confused?
Here we are dealing with a special case of an AC transformer called the Rogowski coil. The electromagnetism mode measures AC or velocity pulses. This current measurement work on the concept of Faraday's law of electromagnetic induction
Rogowski coils have a simple design. They are simpler than traditional current transformers, which use ferromagnetic cores.
Advantages of Rogowski Coils
A Rogowski coil has some extra advantages if you use it right. read them below:
- Rogowski coil has high accuracy. Have no built-in issues. This results in precise current calculated readings.
- These coils are made with high range of variations. Due to this, you can measure low and high currents with max accuracy.
- Latest flexibility in designs allows you to install them around any existing conductors.
Who takes safety protocols seriously. - These coils remove the danger of core saturation with no ferromagnetic core.
If you are thinking why do these coils matter a lot? Here are some more detail values:
Beyond the core benefits mentioned above, Rogowski coils have several advantages.
Rogowski Coils Benefits for Customers
We think these advantages have real value for our customers.
- Have low costs and needs little maintenance
- Ensures strong long life and is safe
- Environment Friendly and good for new applications
- Quickly respond to current changes
- Employ easy temperature compressions
- Handle high-frequency currents
- Steady with complex waveforms
FYI
The mechanism of the Rogowski Coil undergoes continuous evolution at Aim Dynamics,the leading manufacturer of these coils. With a strong commitment to enhancing accuracy rates our team diligently implements daily advancements to optimize userfriendly features for enhanced usability.
Rogowski Coils Applications in Current Measurements
Rogowski coils have a unique design. They also have inherent advantages. They have become versatile powerhouses in many current measurement applications.
Here, we want to delve into some key areas where Rogowski coils excel:
Power Monitoring and Management
- Rogowski coils stand out for their exceptional precision in measuring current. Picture them as the superheroes of power monitoring operating seamlessly in industrial environments data centers and utility substations. Beyond providing data these coils empower you to track energy consumption and identify opportunities for energy conservation.
Fault Detection with Protection Relays
- Rogowski coils offer a wide dynamic range. They can measure currents well across a broad spectrum, unlike traditional current transformers. This makes them well-suited for connecting to protection relays. These relays guard electrical equipment from faults and damage.
- Rogowski coils with their lightningfast response time excel at promptly and reliably identifying faults. This capability not only reduces downtime but also protects equipment from potential damage caused by undetected faults.
Integration with Renewable Energy Systems
- Rogowski coils have a flexible, non-magnetic core. This lets you easily install them around existing conductors in wind and solar farms. This flexibility minimizes disruption during setup and facilitates seamless integration.
- Rogowski coils provide accurate current measurements. They are for tasks like power generation monitoring and grid syncing. This ensures optimal performance of renewable energy installations.
Medical Imaging
- High-frequency Current Measurement: Some Rogowski coil models work in medical imaging. They measure high-frequency currents. The currents are used in Magnetic Resonance Imaging (MRI) machines.
Technology Behind Rogowski Coils
The technology behind Rogowski coils is innovative. It continues to pave the way for new uses. Their capabilities are being explored in areas like:
- Electric vehicle charging needs infrastructure. Rogowski coils might help. They can monitor and improve current flow during charging.
- Rogowski coils can handle high-frequency currents. This makes them potentially valuable. They are for precise current measurement in advanced motor control systems.
Conclusion
At Aimdynamic, we are dedicated to leading in Rogowski coil technology. We track advancements.
We invest in research to ensure our product line reflects the latest innovations. This commitment lets us give our customers the best Rogowski coil solutions. They are advanced and reliable.
